Available for new projects

We get machines running.
And keep them running.

Automation and CNC Service GmbH is your vendor-independent partner for PLC programming, CNC technology, robotics and retrofit. We build special-purpose machines and modernise existing plants — from the first analysis to commissioning on-site.

Discuss a project → View cases
Vendor-independent
PLC · CNC · Robotics · Retrofit
Everything from one source
Analysis → commissioning
Beckhoff focus
TwinCAT 3 · KUKA robotics
Service & Remote
reachable even in a breakdown

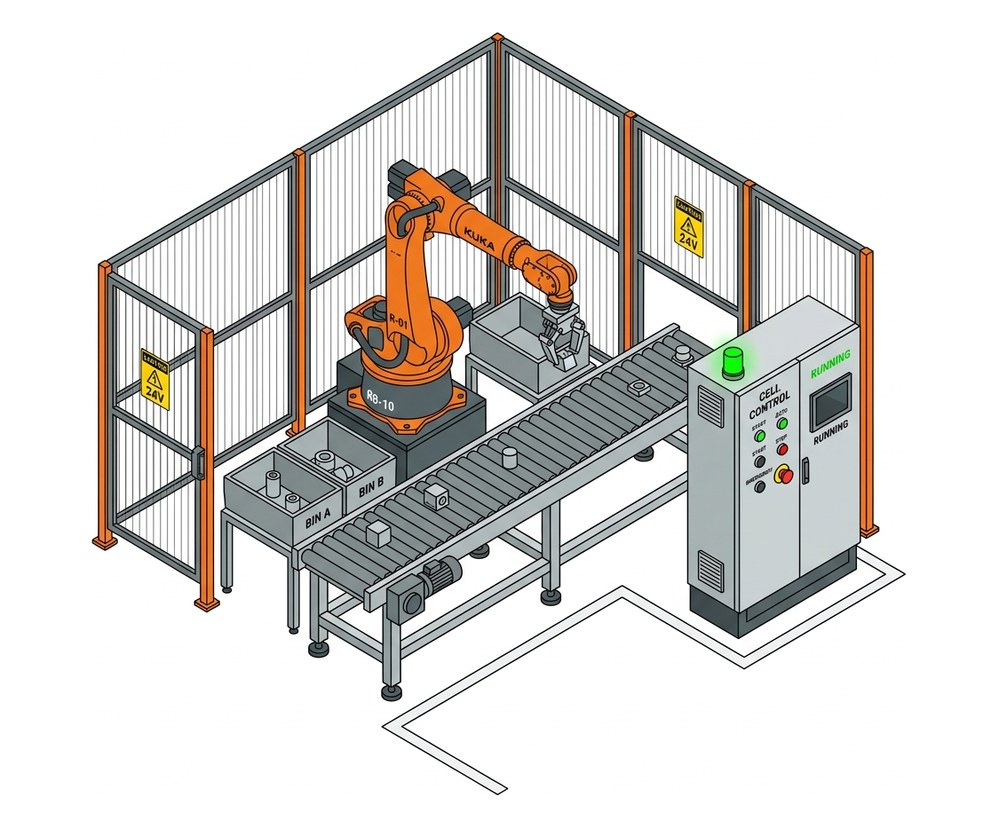

Robot cell · illustration
Technical illustration of a robot cell with a six-axis robot, conveyor belt and electrical cabinet
Control & drive concept Beckhoff · EtherCAT
01Services

Every discipline with one point of contact — from control code to service call.

PLC Programming

Robust control code for new plants and existing machines. Modular, well documented and maintainable — still readable in five years.

TwinCAT 3EtherCATMotionTwinSafe

CNC Technology

Post-processors, tool management and process optimisation. Precision and efficiency in manufacturing — from one-offs to serial production.

Post-processorsTool managementProcess optimisation

Robotics

Automated processes with industrial robots in special machines. Handling, joining, screwing and binding — including machine vision and gripper technology.

KUKAMachine visionGrippers

Retrofit

Modernise existing plants: new controls, new drives and up-to-date safety technology — keeping the proven mechanics. Economical and fast.

Hardware swapSafety upgradeHMI

Machine Service

Fast help and maintenance — including breakdowns. Remote diagnostics, spare parts sourcing and preventive maintenance. We keep your line running.

Remote accessRemote diagnosticsOn-site

Special-Purpose Machines

Control concept, software development and commissioning for customised machines — from spec sheet to acceptance at the end customer.

ConceptSoftwareCommissioningAcceptance
02Cases

Selected projects — where software meets steel.

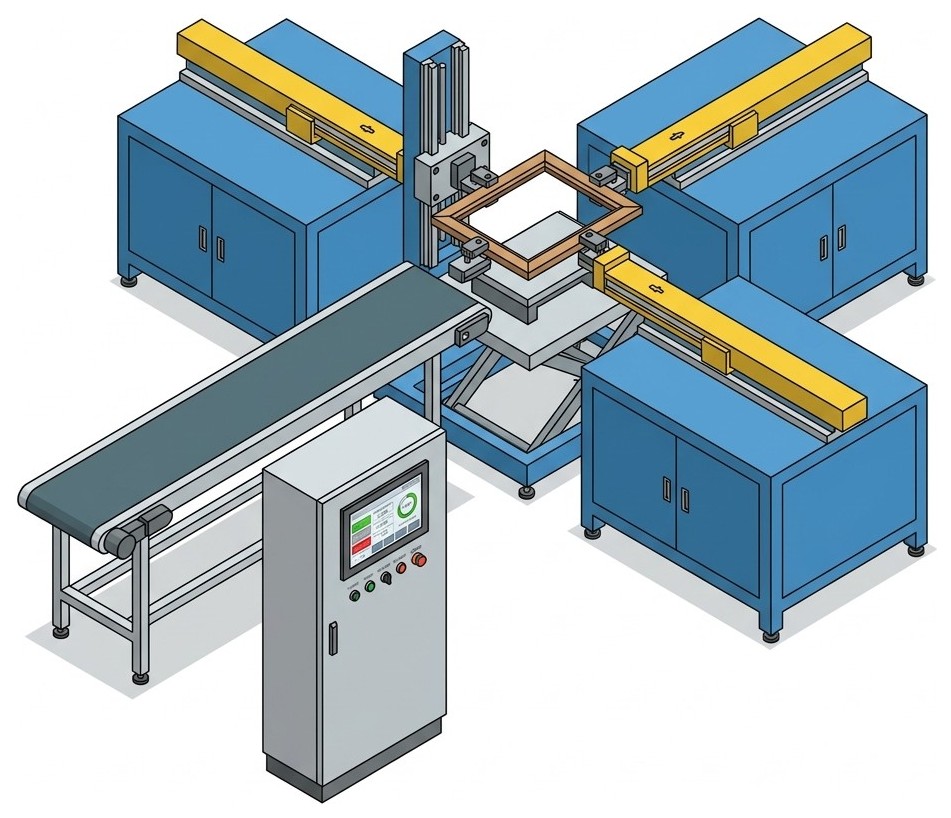

Picture-frame machine · illustration
Technical illustration of the picture-frame machine with four-side feed, mitre press, electrical cabinet and conveyor belt
4-side feed · mitre pressTwinCAT 3
Special machines · Picture-frame production

Feed four frame strips, press them on the mitre — in a single cycle.

The machine feeds four frame strips simultaneously via separate feed axes, aligns them on the mitre and presses them into the finished frame in one cycle. With automatic format adjustment over two servo axes, VFD-driven conveyors and guarded hoods on each axis.

Controls
Beckhoff TwinCAT 3
Drive
Servo gantry · X/Y format
Scope
PLC · HMI · commissioning

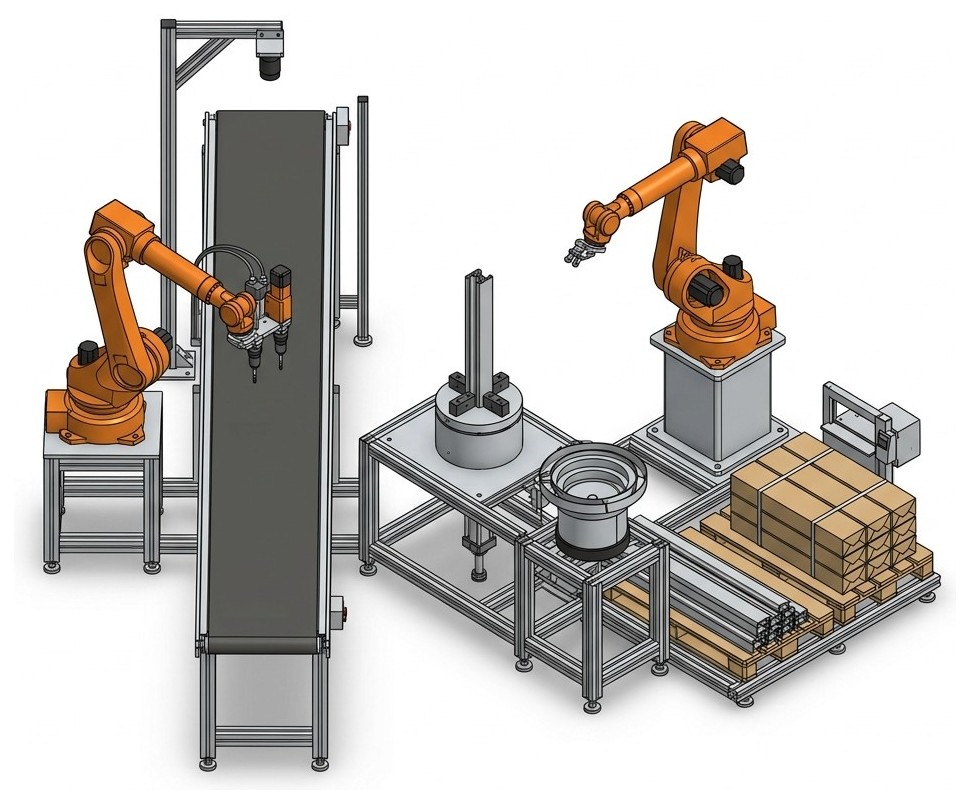

Robot cell · 2× KUKA
Technical illustration of a robot cell with two KUKA six-axis robots, rotary table, conveyor belt and palletising
Vision · screw & bind processTwinSafe
Robotics · Metalwork / roof railings

Robot-assisted assembly of support profiles with end caps and screwing.

Two KUKA six-axis robots load, press and screw support profiles around a rotary table. With part recognition by vision system, safe human-machine separation via TwinSafe and automatic changeover between profile types.

Controls
Beckhoff TwinCAT 3
Robotics
2× KUKA · Keyence vision
Process
Press · screw · bind

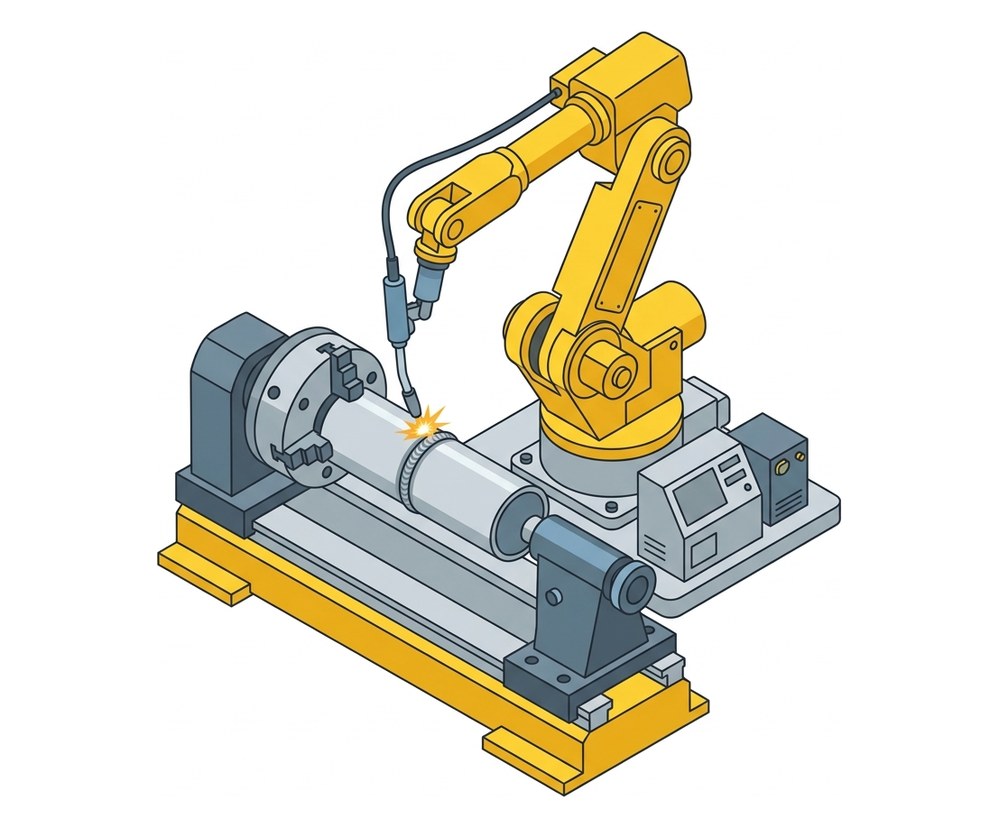

Welding cell · illustration
Technical illustration of a recipe-controlled welding cell for socket-and-pin joints with robot
Recipe-controlled welding cell · socket-and-pinTwinCAT 3
Special machines · Tube & profile welding

Recipe-controlled welding cell for socket-and-pin joints.

Material buffer, torch guidance and the welding process run recipe-controlled to stored profiles. The welding torch is actively tracked during the process and compensates part tolerances automatically — tubes can be round or oval. Plus fast changeover between part types via recipe management, end-to-end axis and bus diagnostics and an integrated safety concept.

Controls
Beckhoff TwinCAT 3
Process
Active torch tracking · tolerance compensation
Data
Recipes · diagnostics
AI quality control · schematic
Schematic of the AI quality control: camera above a pallet of concrete blocks, one defective block is marked and highlighted in the analysis grid
ML vision · defect detectionTensorFlow · ADS
Machine vision · Concrete products

AI quality control for concrete blocks — every batch inspected in under two seconds.

A camera captures the complete batch on the pallet; our in-house ML system detects every single block and checks it for cracks, chipping and colour defects. The positions of defective blocks go straight to the Beckhoff controller via ADS — the robot swaps them automatically. New products can be retrained right at the machine, no ML expertise required.

Vision
In-house ML system · TensorFlow
Interface
Beckhoff · ADS
Cycle
< 2 s per batch
03Approach

Four clear steps — no detours into production.

Analysis

Technical baseline

We review spec, mechanics, controls and documentation — or create it when missing. Result: realistic scope and a reliable schedule.

Concept

Controls & architecture

Hardware selection, functional spec and safety concept. A clean concept saves weeks on the shopfloor later.

Implementation

Software & integration

PLC, CNC and robotics code, HMI and vision. Modular, tested on the simulator and rig, fully documented.

Commissioning

On-site & acceptance

Build-up, calibration, tuning, training and acceptance. And afterwards reachable when it matters — remote, phone or in person.

04Industries

Wherever machines have to run reliably.

Metalworking
Special machines
Welding & tube tech
Serial & cycle production
Assembly & joining
Plastics
Recycling
05Technology

At home in Beckhoff TwinCAT — from the controller to the robot cell.

Controls
Beckhoff TwinCAT 3EtherCATTwinSafe
Motion & Drives
Beckhoff AX8000NC / MotionBosch RexrothInovanceSEW
Robotics
KUKA (KRL)
Vision & Process
Keyence VisionIn-house ML visionDeprag screwdrivingWelding
HMI & Operation
Beckhoff TwinCAT HMI (TF2000)HTML5 · web-based
Safety & Bus
TwinSafePilzEtherCAT / FSoEIO-LinkOPC UA
Focus on Beckhoff TwinCAT 3 — controls, motion, robotics and safety from one source.
06Company

An engineering shop, not a corporation — and that is exactly the advantage.

Automation and CNC Service GmbH is an owner-managed specialist for industrial automation based in Langenberg (East Westphalia, Germany). We program controls, integrate robots and modernise existing plants — vendor-independent, with 20 years of experience and a clear focus on Beckhoff TwinCAT 3 and KUKA robotics.

What matters to us: cleanly structured, documented code, honest schedules and a plant that is still maintainable in five years. From spec sheet to acceptance at the end customer you stay with one contact — and we are reachable when it counts in operation.

Stefan Kleineniggenkemper & Niklas Rasche
Managing Directors
LocationLangenberg, Germany
Legal formGmbH · HRB 13628
Experience20 years in automation
Service areaDACH & EU-wide
FocusTwinCAT 3 · KUKA
ServicesSpecial machines · retrofit · service
Contact

Got a project? Let’s talk.

Call us or drop a short line about what you need — you’ll reach an engineer who understands the technology. No queue, no form letter.

Phone +49 1590 4346815 Email info@aacs.dev Location Gildestraße 12 · 33449 Langenberg
